Description

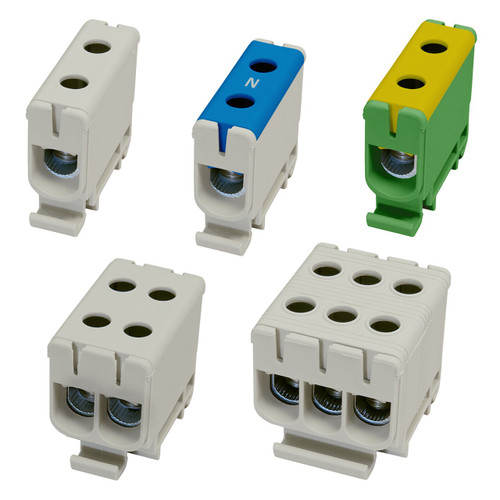

Distribution Blocks, 160A, suitable for wire size 2 - 50mm²
The Ttec DB Series Distribution Blocks are ideal as a panel input to feed power into a cabinet with convenient lug free termination. Ttec DB Distribution Blocks are ideal for high current applications and provides an easy to install solution.
NOTE: Yellow/Green (Earth) and Blue (Neutral) versions are also available in variants with two connection points only.
Conductor Cross Section Stranded min: 2.5 mm²
Conductor Cross Section Stranded max: 50 mm²
Insulation Voltage: 690 V
Rated Current: 160 A
Number of Connection Points: 2, 4 or 6
Width: 18 mm (2 Connection Points) / 30 mm (4 Connection Points) / 42 mm (6 Connection Points)
Height: 50 mm
Depth: 44 mm
