** PLEASE NOTE: The AC version of our RtecX6 has now been discontinued and superseded by the RtecX6A Type A 6kA RCBOs. **

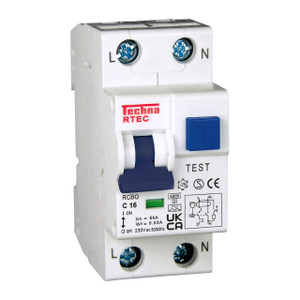

Techna’s RtecX6A 6kA Residual Current Circuit Breakers with Overcurrent Protection (RCBOs) offer the functionality of both a Miniature Circuit Breaker (MCB) and a Residual Current Circuit Breaker (RCCB) in a single device, therefore combining residual current or earth leakage (ground fault) protection with overcurrent and short circuit protection.
Our RtecX6A 6kA RCBOs feature dual pole switching with live and neutral disconnection and are available in Type A (for alternating and pulsating direct currents), in current ratings from 6A to 40A, with residual current sensitivity from 30mA to 300mA and in trip curves B and C. We also offer low voltage (LV) versions, which have been designed to be used on 110V systems.
The RtecX6A residual current circuit breakers with overcurrent protection are suitable for mounting on DIN-Rail and can also be used inside our Dtec Circuit Breaker Enclosures and our WINtec IP67 Circuit Breaker Inspection/Protection Windows.
RtecX6A 6kA RCBOs Technical Specification
• Rated Short Circuit Capacity: 6kA
• Number of Poles: 2
• Type: A (Alternating and Pulsating Direct Currents)
• Current Range: 6A - 40A
• Rated Voltage: 110 Vac or 230 Vac
• Residual Current Sensitivity: 30mA, 100mA or 300mA
• Frequency Range: 50Hz - 60Hz
• Trip Curves: B and C
• Mounting: DIN-Rail
• Electrical Life: 4,000 Switching Operations
-
£31.42 - £53.94 inc. VAT£26.18 - £44.95 ex. VAT
